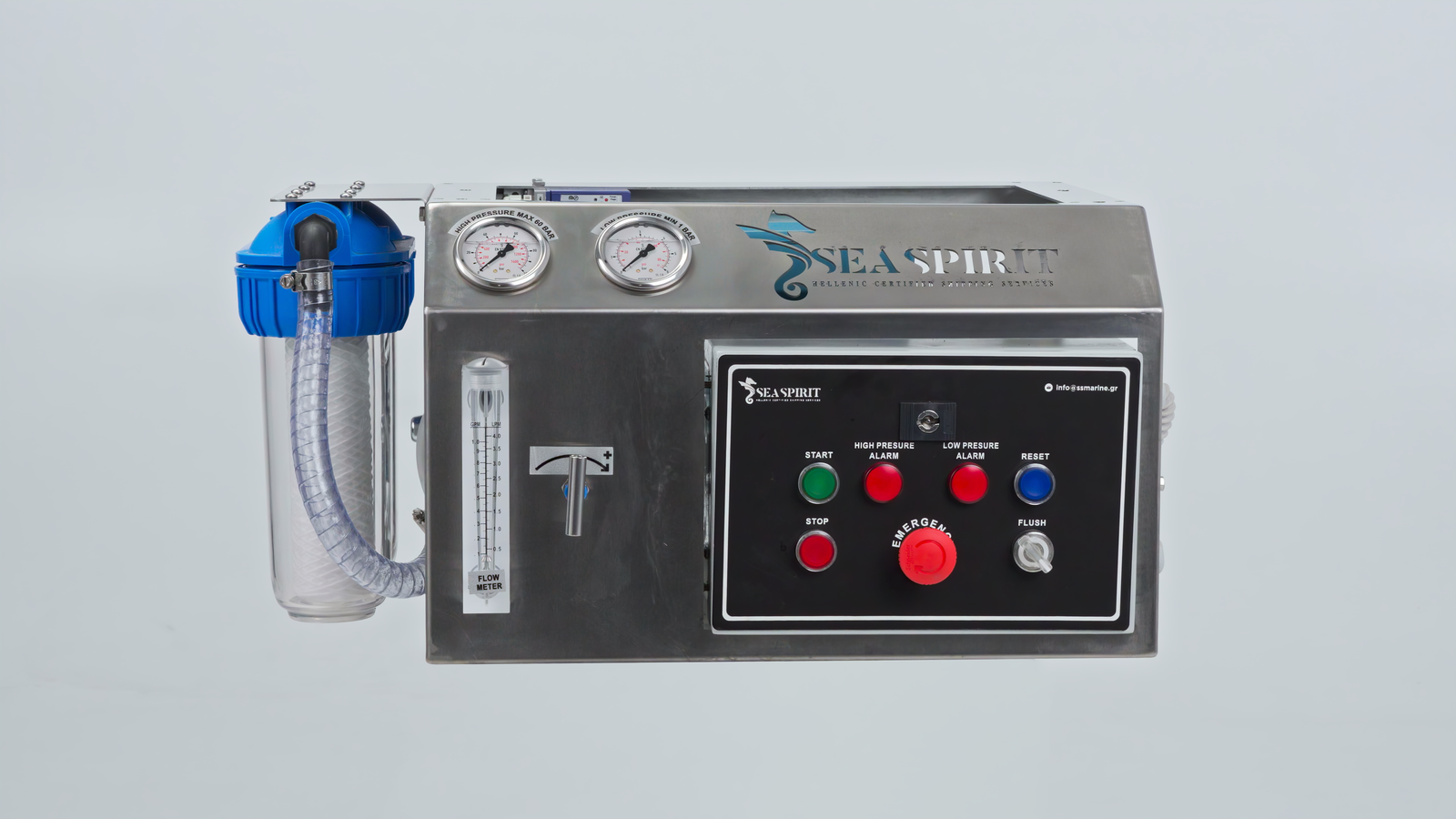

AquaSpirit Pro

Professional performance for large boats and demanding conditions

Request Quote View Specs ↓

Loading 0%

1 / —

Swipe to rotate

1 / 138

Product Specifications

Technical Specifications

Full technical specifications per production capacity

01 / 04 Aqua Spirit Pro 7.0

70 L

Production Per Hour

Amount of membranes

1xSW30-2540

Weight

67 kg

Voltage / Frequence / Installed Power

230 V AC 50Hz / 1.9KW

Max dimensions L×W×H (cm)

55 x 49 x 32

Membrane case (cm × ø.)

130x10

140

02 / 04 Aqua Spirit Pro 14.0

140 L

Production Per Hour

Amount of membranes

2xSW30-2540

Weight

73 kg

Voltage / Frequence / Installed Power

230 V AC 50Hz / 1.9KW

Max dimensions L×W×H (cm)

55 x 49 x 32

Membrane case (cm × ø.)

130x28

180

03 / 04 Aqua Spirit Pro 22.0

180 L

Production Per Hour

Amount of membranes

1xSW30-4040

Weight

78 kg

Voltage / Frequence / Installed Power

230 V AC 50Hz / 2.6KW

Max dimensions L×W×H (cm)

55 x 49 x 32

Membrane case (cm × ø.)

138x17

280

04 / 04 Aqua Spirit Pro 28.0

280 L

Production Per Hour

Amount of membranes

4xSW30-2540

Weight

85 kg

Voltage / Frequence / Installed Power

230 V AC 50Hz / 2.2KW

Max dimensions L×W×H (cm)

55 x 49 x 32

Membrane case (cm × ø.)

130x56

AquaSpirit Pro

Technical Specifications

Interested in the AquaSpirit Pro?
